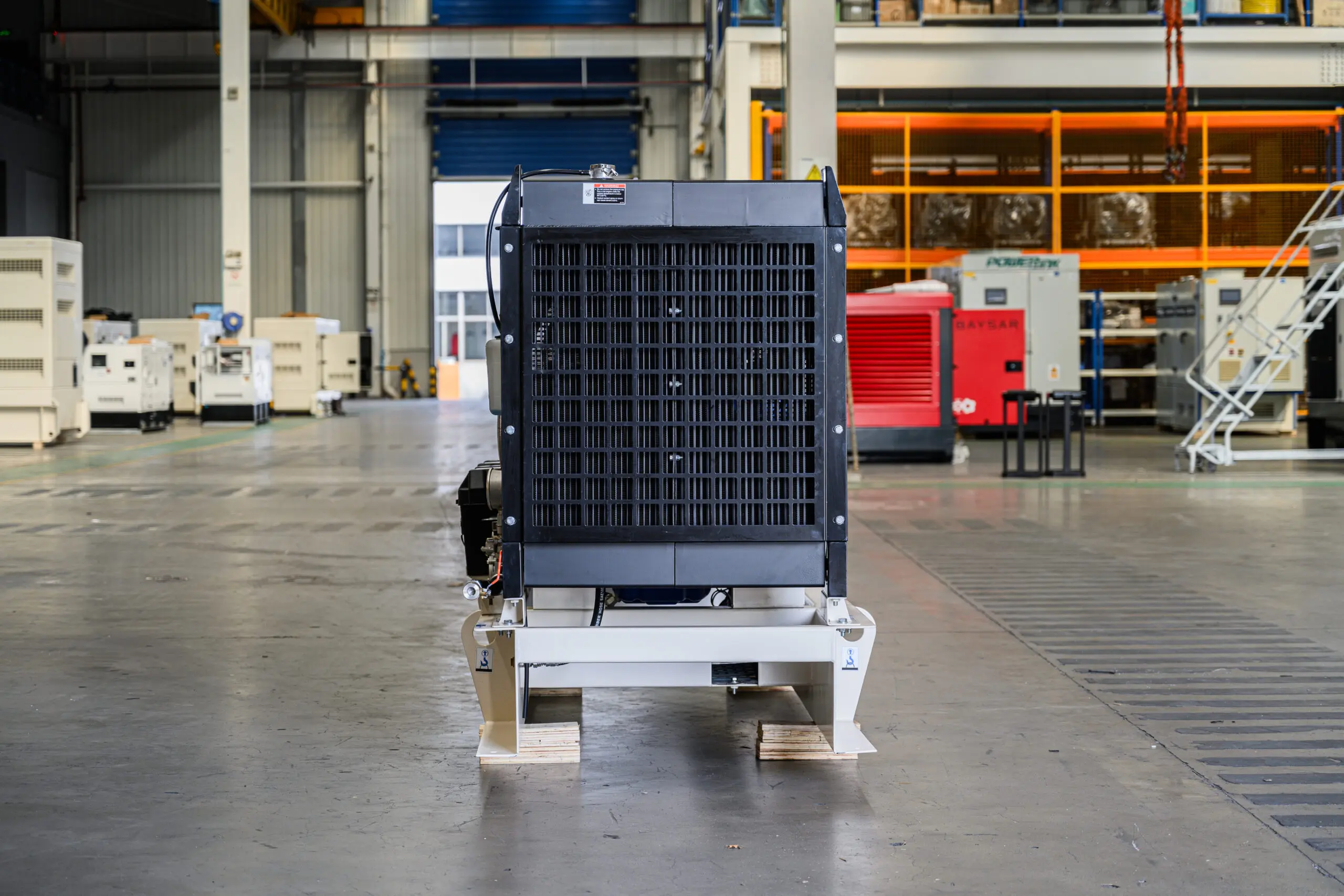

Vertical Radiator
Integrated radiator on GPU base frame makes the unit installation faster and more easily. A remote radiator is also possible if you wanna save the noise and have limited space.

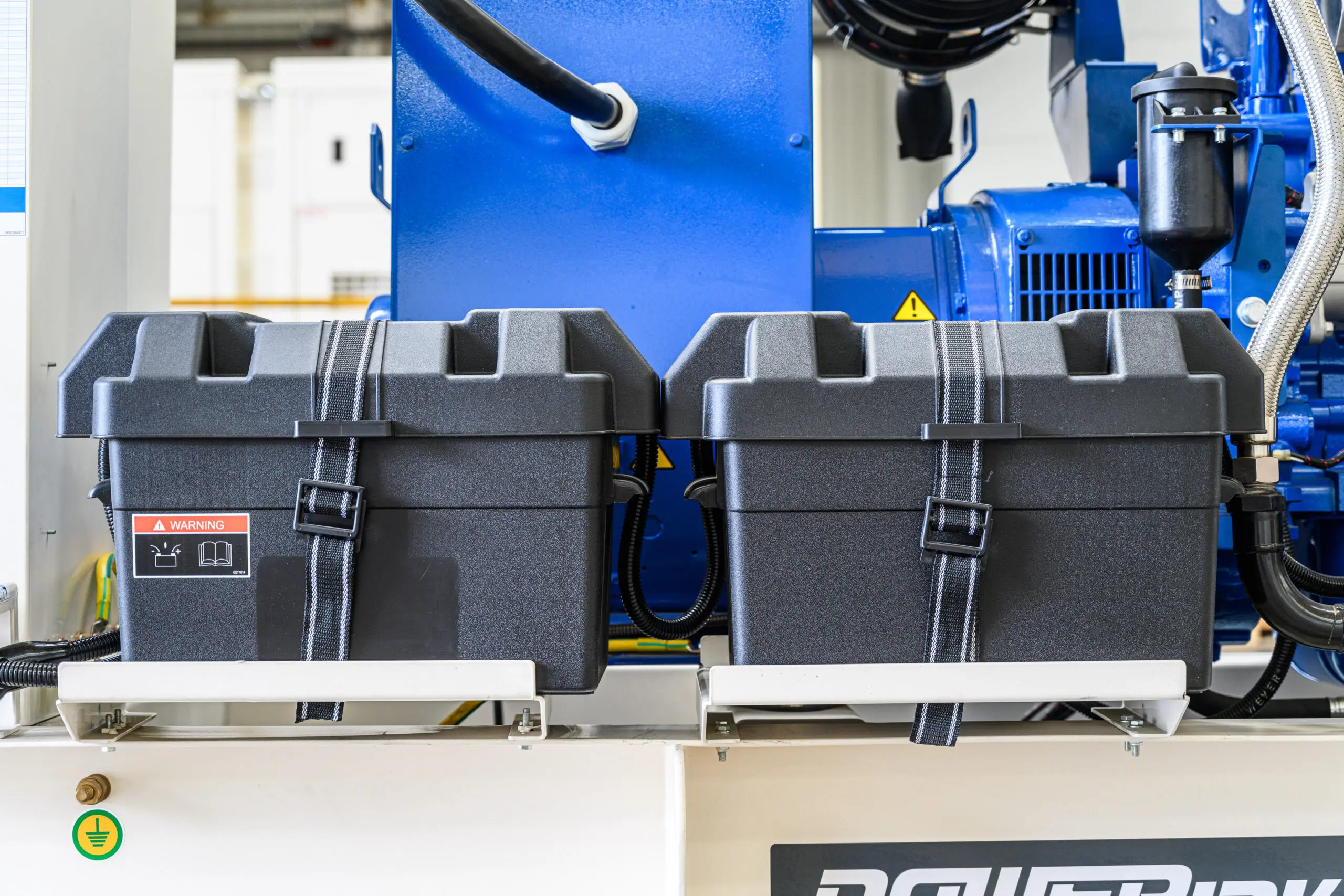

Battery System
The battery system is arranged on the steel structure, on the side of the generator, which is maintenace-free.

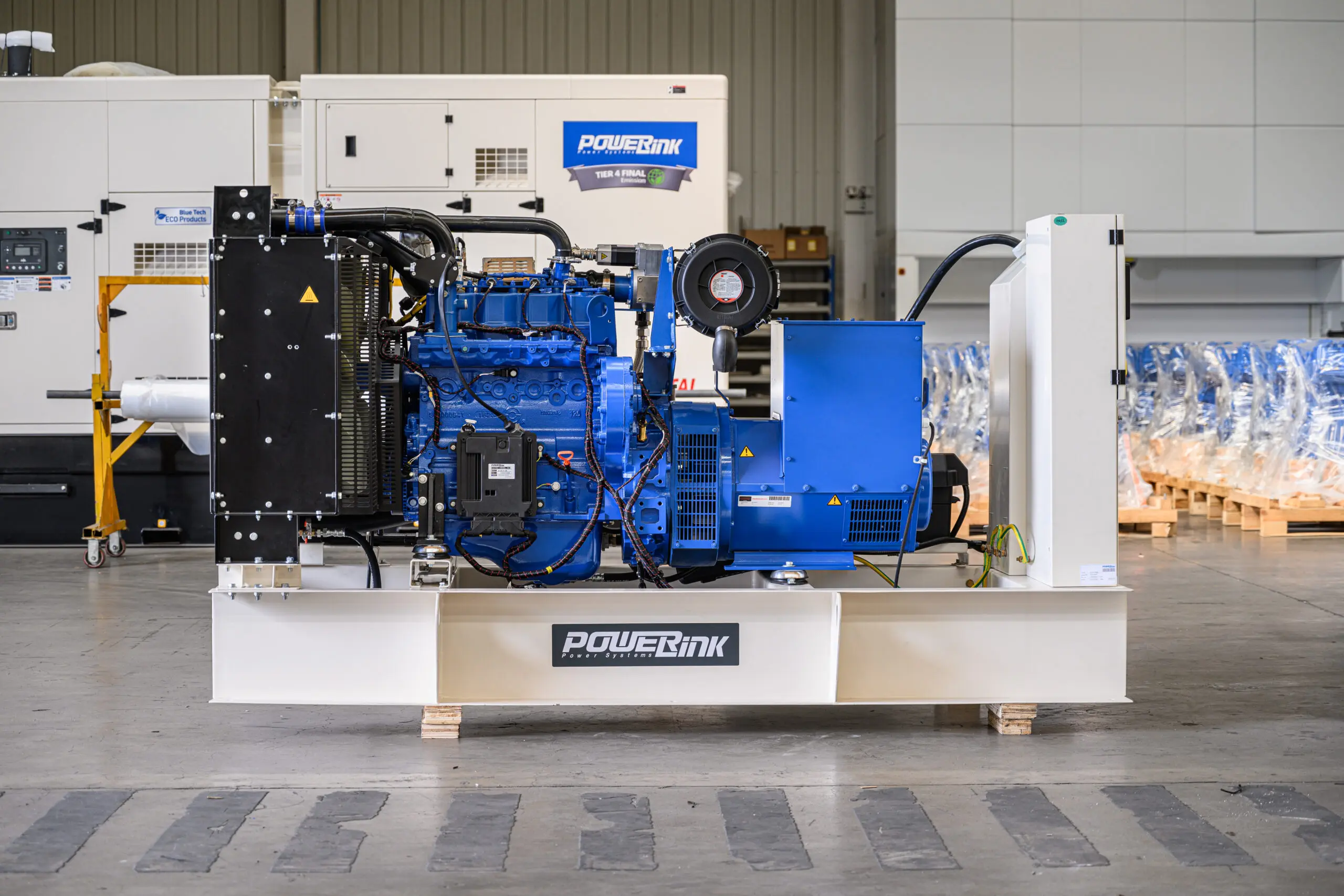

Suitable Coupling

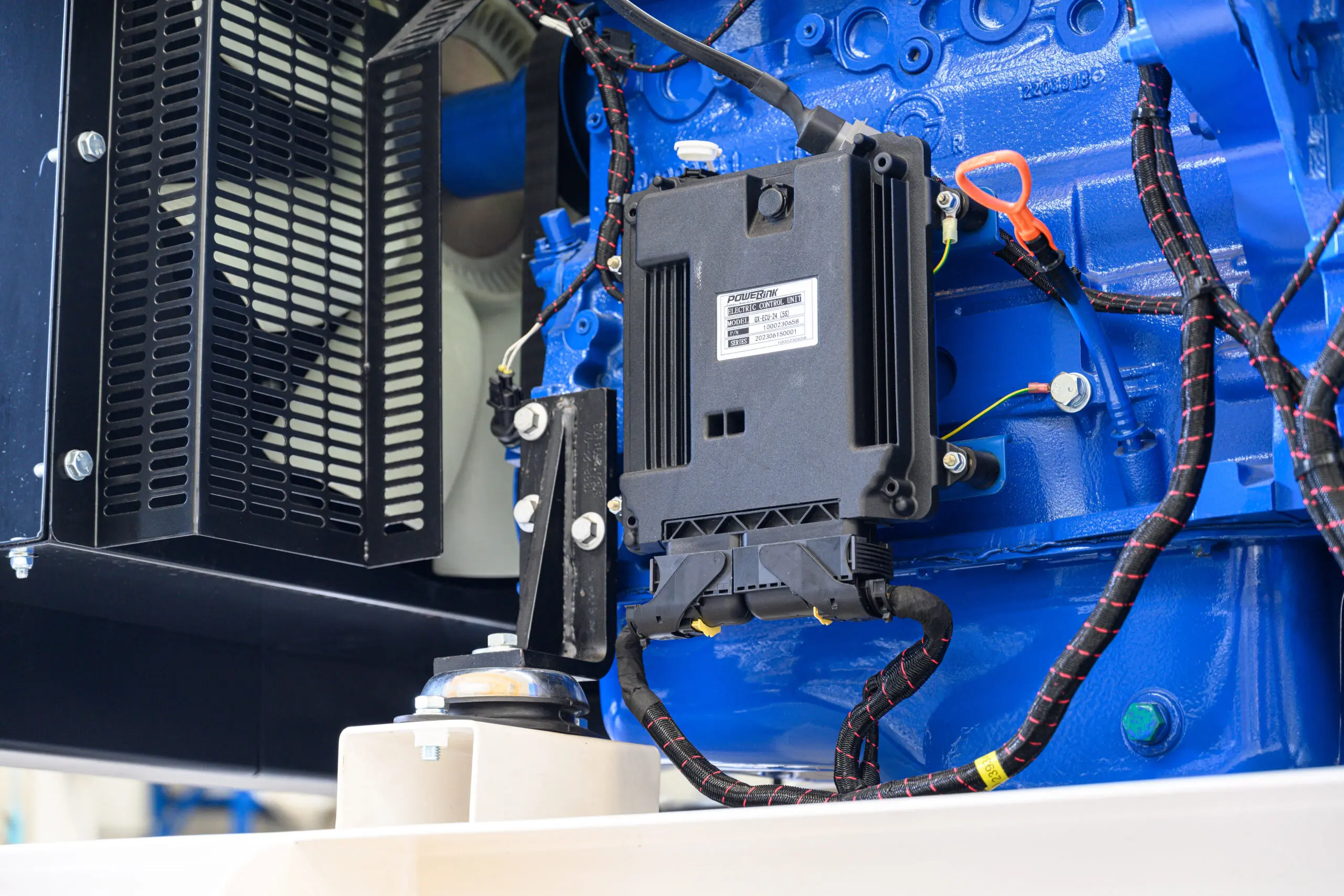

The engine, alternator and radiator are installed on the same anti-corrosion base frame via anti-knock pad.

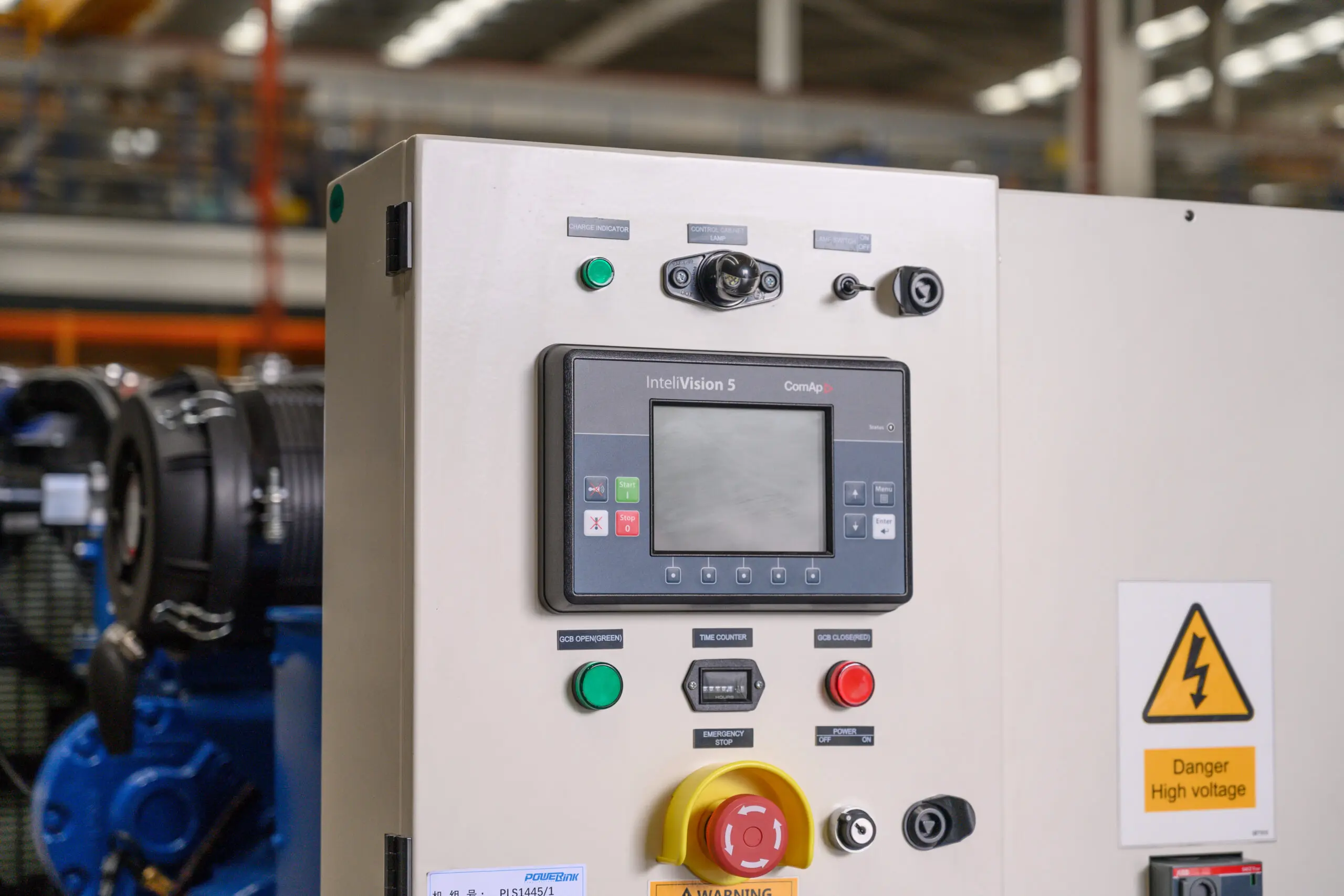

Smart PCC300 Control System and High-quality Circuit Breaker
Island model, several units in parallel , single unit parallel with the grid or several units in parallel with Mains. You can achieve any one of them with this smart control system.
Spare Parts List - GXE50-NG
| Maintain Item | Part number | Part model | Location | Quantity | Supplier |
| Oil filter | 1000241448 | JLX-422C | Engine | 2 | Powerlink |
| Lubricating oil | Engine | 42L | Powerlink | ||
| Air/oil separator element | 1000235839 | Engine | 1 | Powerlink | |
| Air filter element | 1000197158 | LJ45500 | Engine | 1 | Powerlink |
| Spark plug | 1000301480 | IFR7AH4D | Engine | 6 | Powerlink |
| Gas filter element | 1000292420 | Engine | 1 | Powerlink | |
| Cylinder head assembly | Engine | 1 | Powerlink | ||
| Cylinder head bolt | Engine | 6 | Powerlink | ||
| Cylinder head bolt | Engine | 20 | Powerlink | ||
| Cylinder head gasket | Engine | 1 | Powerlink | ||
| Repair package | 1 | Powerlink | |||
| Total of parts cost | |||||
| Check the engine control system program,smoke exhaust, and valve clearance | 0.5 | Powerlink | |||
| Check the ignition coils, change it if necessary | 0.5 | Powerlink | |||
| Check the high voltage cable, change it if necessary | 0.5 | Powerlink | |||
| Check engine intake air priessure, clean the intercooler if the data is abnormal | 0.5 | Powerlink | |||
| Check and adjust the ignition order | 0.5 | Powerlink | |||
| Change lubricating oil | 4.0 | Powerlink | |||
| Change oil filter | 0.5 | Powerlink | |||
| Change air/oil separator element,Gas filter element | 1.0 | Powerlink | |||
| Change air filter element | 1.0 | Powerlink | |||
| Change safety filter element | 1.0 | Powerlink | |||
| Change spark plug | 2.0 | Powerlink | |||
| Change cylinder head assembly | 8.0 | Powerlink | |||
| Change cylinder head bolt | |||||
| Change cylinder head gasket | |||||
| Change repair package | |||||
| Systematic recording | 2.0 | Powerlink |
▶ GXC Series Product Focus
▶ PowerLink Gas Generator Gas Cogeneration CHP Units 10kW to 2000kW Energy Saving Solution
▶ Cost-effective Power Solution GXE Series 10KW~350kw
▶ Microgrids ACG Gas Cogeneration MCHP Video
Vertical Radiator
Integrated radiator on GPU base frame makes the unit installation faster and more easily. A remote radiator is also possible if you wanna save the noise and have limited space.
Battery System
The battery system is arranged on the steel structure, on the side of the generator, which is maintenace-free.
Suitable Coupling
The engine, alternator and radiator are installed on the same anti-corrosion base frame via anti-knock pad.
Smart PCC300 Control System and High-quality Circuit Breaker
Island model, several units in parallel , single unit parallel with the grid or several units in parallel with Mains. You can achieve any one of them with this smart control system.
A cogeneration system is both flexible and reliable, because of its efficient use of energy, industrial-scale cogeneration is more economical and environmentally attractive than conventional fossil fuel power plants.
Inventory List
| No. | Product No. | Model | Job No. | Quantity | Unit Type | Structure | Engine Model | Alternator Model | Control | Specs |
| 1 | 1000244011 | GR12S-NG | PLS1187/1 | 1 | Genset | Soundproof | GR1.8E01 | ECP28-S/4 | MRS |  |
| 2 | 1000244012 | GR16S-NG | PLS1187/2 | 1 | Genset | Soundproof | GR2.5E01 | ECP28-M/4 | MRS | |
| 3 | 1000244014 | GR28S-NG | PLS1188/1 | 1 | Genset | Soundproof | GR3.8E01 | ECO32-2S/4 | MRS | |
| 4 | 1000258530 | GR16S-LPG | PLS1207/6 | 1 | Genset | Soundproof | GR2.5 E01 | ECP28-M/4 | PLC220 | |
| 5 | 1000028221 | GR20S-LPG | PLS1406/2 | 1 | Genset | Soundproof | WG2503-N-PWL-1 | LSA42.3VS1 | XC762 | |
| 6 | 1000028222 | GR30S-NG | PLS1406/3 | 1 | Genset | Soundproof | WG3800-N-C-CHN-1 | LSA42.3S5 | XC762 | |
| 7 | 1000026105 | GXC50S-BG | PLS1354/1 | 1 | CHP | Soundproof | GX5S-LE02C | PL2D | PCC300 | |
| 8 | 1000026105 | GXC50S-BG | PLS1354/2 | 1 | CHP | Soundproof | GX5S-LE02C | PL2D | PCC300 | |
| 9 | 1000026105 | GXC50S-BG | PLS1354/3 | 1 | CHP | Soundproof | GX5S-LE02C | PL2D | PCC300 | |
| 10 | 1000026105 | GXC50S-BG | PLS1354/4 | 1 | CHP | Soundproof | GX5S-LE02C | PL2D | PCC300 | |
| 11 | 1000026107 | GXC150S-BG | PLS1326/1 | 1 | CHP | Soundproof | GX10T-LE02C | LSA46.3S3 | PCC300 | |
| 12 | 1000026107 | GXC150S-BG | PLS1326/2 | 1 | CHP | Soundproof | GX10T-LE02C | LSA46.3S3 | PCC300 | |
| 13 | 1000026107 | GXC150S-BG | PLS1326/3 | 1 | CHP | Soundproof | GX10T-LE02C | LSA46.3S3 | PCC300 | |
| 14 | 1000028195 | GXE250MC-NG | PLS1397/2 | 1 | Genset | Mini Container | GX13K-LE02G | PL4LS | GCC742 | |
| 15 | 1000027454 | CG520C-BG | PG2109/3 | 1 | CHP | Container | E 3262 LE202 | LSA49.3M6 | PCC300 | |
| 16 | 1000028235 | GXE150S-BG | PG2251/19 | 1 | Genset | Soundproof | GX10T-LE02G | PL3F | GCC742 | |
| 17 | 1000028235 | GXE150S-BG | PG2251/20 | 1 | Genset | Soundproof | GX10T-LE02G | PL3F | GCC742 | |
| 18 | 1000028235 | GXE150S-BG | PG2251/21 | 1 | Genset | Soundproof | GX10T-LE02G | PL3F | GCC742 | |
| 19 | 1000028231 | GXE250S-BG | PG2251/24 | 1 | Genset | Soundproof | GX13K-LE01G BG | PL4LS | GCC742 | |
| 20 | 1000352001 | GXE100-BG | PLS1334/2 | 1 | Gas Genset | Open | GX7S-LE02 | PL3DS | GCC742 | |
| 21 | 1000028188 | GXC110S-6BG | PG2216/2 | 1 | CHP | Soundproof | GX7S-LE02 | PL3DS | GCC742 | |
| 22 | 1000028229 | TCG800-NG | PLS1405/1 | 1 | CHP | Open | TCG3016V16 | LSA50.2M6 | PCC300 | |
| 23 | 1000244004 | GXE180-NG | PLS1198/4 | 1 | Genset | Open | 50Hz-3PH | GX11F-LE02 | LSA46.2L6 | |
| 24 | 1000258609 | GSC25S | PLS1218/3 | 1 | MCHP | Soundproof | 50Hz-3PH | 4Z | ECP28-VL/4 | |
| 25 | 1000286167 | GXC200C-BG | PLS1266/3 | 1 | CHP | Container | GX12T-LE02C | PL3H | PCC300 | |
| 26 | 1000027473 | GXC200C-BG | PLS1339/1 | 1 | CHP | Container | GX12T-LE02C | PL4MS | PCC300 | |
| 27 | 1000027320 | GXE350S-6BG | PG2041/4 | 1 | Genset | Soundproof | GX22D-LE02 | LSA47.2S5 | GCC742 | |
| 28 | 1000028177 | GXE100S-BG | PG2196/1 | 1 | Genset | Soundproof | GX7S-LE02 | PL3DS | GCC742 | |
| 29 | 1000286229 | GXE260C-6BG | PG2086/1 | 1 | Genset | Container | GX13K-LE02 NG | PL4M | GCC742 | |
| 30 | 1000434009 | GRS30S-LPG | PLS1444/1 | 1 | Genset | Soundproof | 50Hz-3PH | GR3.0 LE01L | PL2B | |
| 31 | 1000037041 | GXE350-NG | PLS1264 | 1 | Genset | Open | 1500/50 | GX20T-LE02 | S5L1D-C4 | |
| 32 | 1000352466 | ACG20S | PLS1395/1 | 1 | MCHP | Soundproof | 50Hz-3PH | 4Y | |
|
| 33 | 1000025868 | CG500DS-BG | PLS1252/2 | 1 | CHP | Soundproof | 50Hz-3PH | TBG-616V12K | |
|
| 34 | 1000037064 | ACG30S-6NG | PLS1463/1 | 1 | MCHP | Soundproof | 1800/60 | 60HZ/3PH | PCC300M | |
| 35 | 1000037065 | ACG50S-6NG | PLS1463/2 | 1 | MCHP | Soundproof | 1800/60 | 60HZ/3PH | PCC300M | |
| 36 | 1000037040 | GXE250-NG | PLS1444/4 | 1 | Genset | Open | 1500/50 | 50Hz-3PH | PCC300 | |

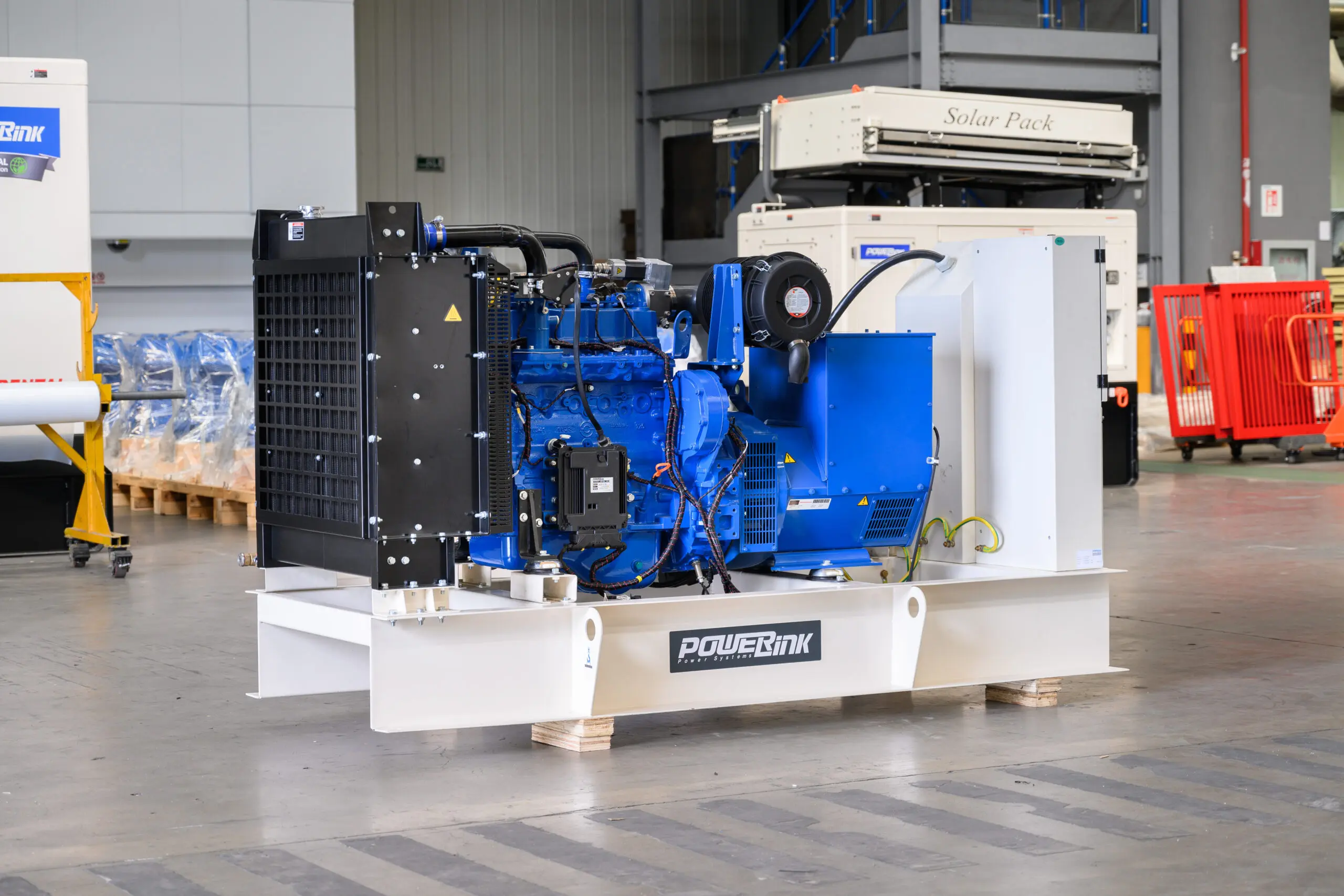

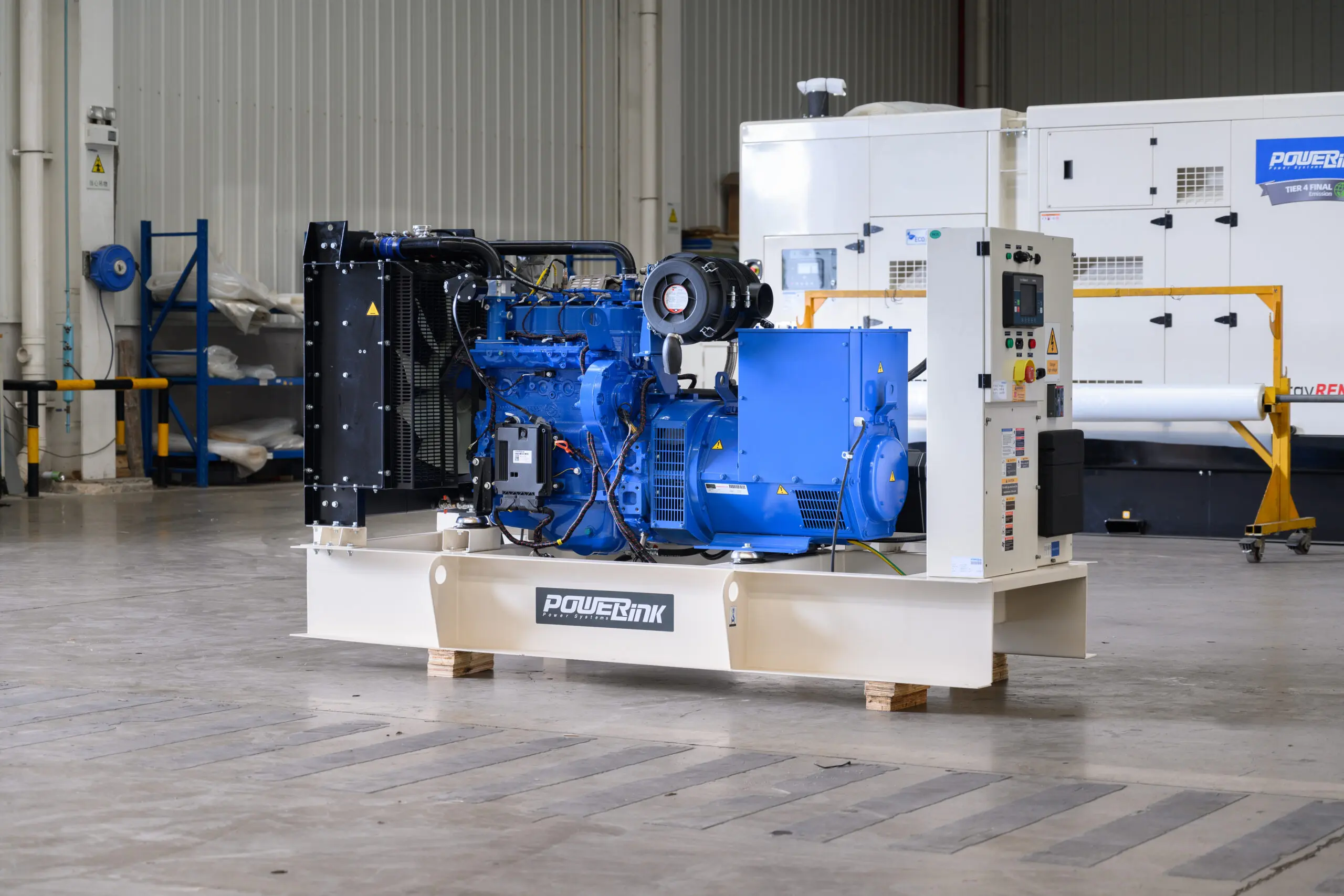

Gas Genset
Our GXE50-NG Gas Gensets are a cost-effective model, which is a good choice for small company or small gas generation unit dealers. This model belongs to our GXE series, the power range is from 10KW to 350KW. You can have a flexible option on the configurations depending on your budget.
