Mixer
Mixer to adjust the ratio of air and gas

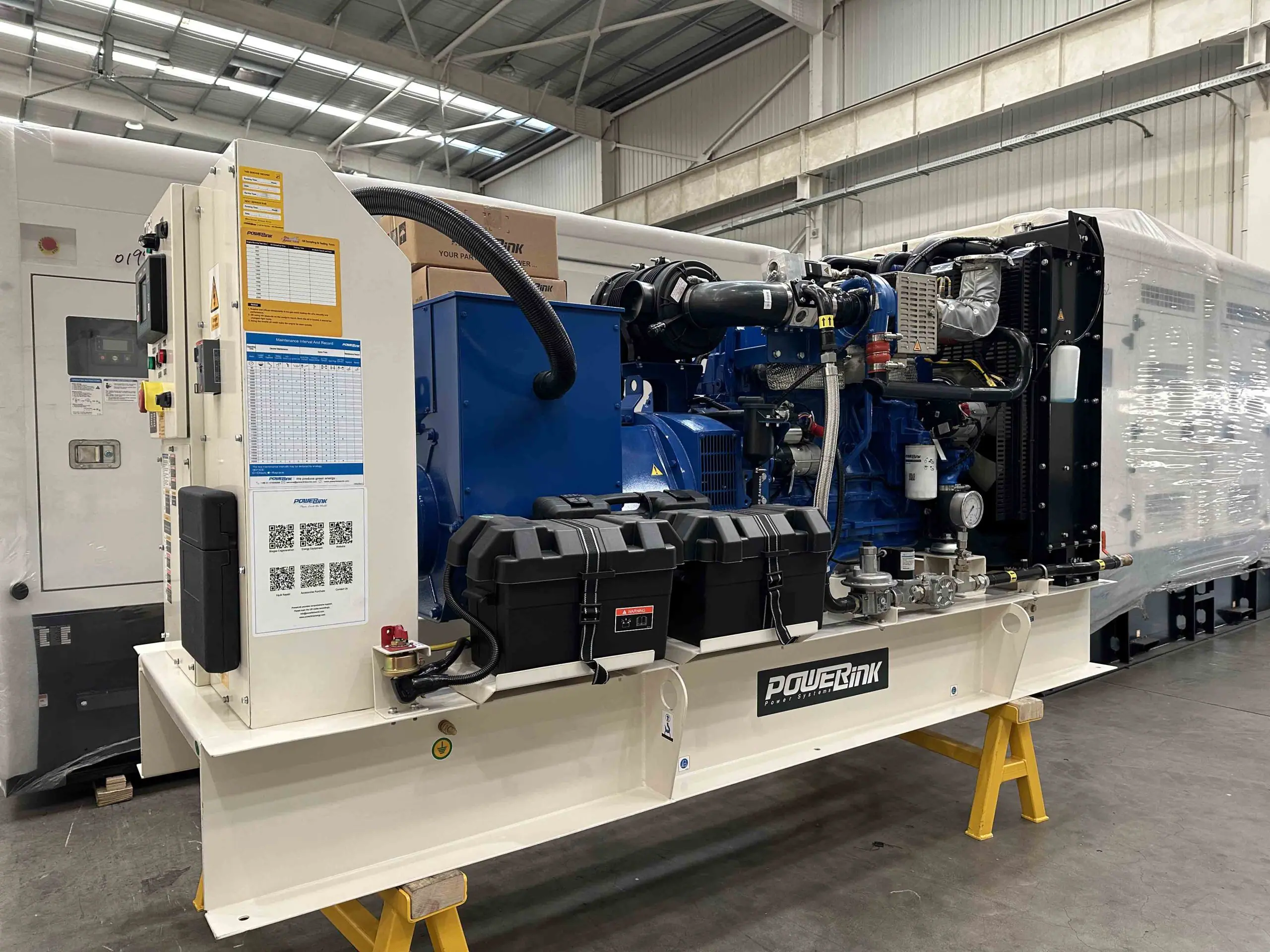

Battery System
The battery system is arranged on the steel structure, on the side of the generator
Anti-corrosion coating
Anti-corrosion coating, exterior baking paint. Two coats. Wear and scratch resistance. Special anticorrosion technology.
Gas Valve Group
Gas valve group, used for pressure regulation, filtration, balancing, safety protection
Spare Parts List - GXE100-NG
| Maintain Item | Part number | Part model | Location | Quantity | Supplier |
| Oil filter | 1000241448 | JLX-422C | Engine | 2 | Powerlink |
| Lubricating oil | Engine | 42L | Powerlink | ||
| Air/oil separator element | 1000235839 | Engine | 1 | Powerlink | |
| Air filter element | 1000197166 | LJ45600-1 | Engine | 1 | Powerlink |
| Spark plug | 1000301480 | IFR7AH4D | Engine | 6 | Powerlink |
| Gas filter element | 1000292420 | Engine | 1 | Powerlink | |
| Cylinder head assembly | Engine | 1 | Powerlink | ||
| Cylinder head bolt | Engine | 6 | Powerlink | ||
| Cylinder head bolt | Engine | 20 | Powerlink | ||
| Cylinder head gasket | Engine | 1 | Powerlink | ||
| Repair package | 1 | Powerlink |
▶ Basic details of our GXE100-BG Bio Gas Generator
▶ PowerLink Gas CHP 10~2000KW
▶ Cost-effective Power Solution GXE Series 10KW~350kw
▶ Microgrids ACG Gas Cogeneration MCHP Video
Mixer
Mixer to adjust the ratio of air and gas
Battery System
The battery system is arranged on the steel structure, on the side of the generator
Anti-corrosion coating
Anti-corrosion coating, exterior baking paint. Two coats. Wear and scratch resistance. Special anticorrosion technology.
Gas Valve Group
Gas valve group, used for pressure regulation, filtration, balancing, safety protection
A cogeneration system is both flexible and reliable, because of its efficient use of energy, industrial-scale cogeneration is more economical and environmentally attractive than conventional fossil fuel power plants.
Inventory List
| No. | Product No. | Model | Job No. | Quantity | Unit Type | Structure | Engine Model | Alternator Model | Control | Specs |
| 1 | 1000244011 | GR12S-NG | PLS1187/1 | 1 | Genset | Soundproof | GR1.8E01 | ECP28-S/4 | MRS |  |
| 2 | 1000244012 | GR16S-NG | PLS1187/2 | 1 | Genset | Soundproof | GR2.5E01 | ECP28-M/4 | MRS | |
| 3 | 1000244014 | GR28S-NG | PLS1188/1 | 1 | Genset | Soundproof | GR3.8E01 | ECO32-2S/4 | MRS | |
| 4 | 1000258530 | GR16S-LPG | PLS1207/6 | 1 | Genset | Soundproof | GR2.5 E01 | ECP28-M/4 | PLC220 | |
| 5 | 1000028221 | GR20S-LPG | PLS1406/2 | 1 | Genset | Soundproof | WG2503-N-PWL-1 | LSA42.3VS1 | XC762 | |
| 6 | 1000028222 | GR30S-NG | PLS1406/3 | 1 | Genset | Soundproof | WG3800-N-C-CHN-1 | LSA42.3S5 | XC762 | |
| 7 | 1000026105 | GXC50S-BG | PLS1354/1 | 1 | CHP | Soundproof | GX5S-LE02C | PL2D | PCC300 | |
| 8 | 1000026105 | GXC50S-BG | PLS1354/2 | 1 | CHP | Soundproof | GX5S-LE02C | PL2D | PCC300 | |
| 9 | 1000026105 | GXC50S-BG | PLS1354/3 | 1 | CHP | Soundproof | GX5S-LE02C | PL2D | PCC300 | |
| 10 | 1000026105 | GXC50S-BG | PLS1354/4 | 1 | CHP | Soundproof | GX5S-LE02C | PL2D | PCC300 | |
| 11 | 1000026107 | GXC150S-BG | PLS1326/1 | 1 | CHP | Soundproof | GX10T-LE02C | LSA46.3S3 | PCC300 | |
| 12 | 1000026107 | GXC150S-BG | PLS1326/2 | 1 | CHP | Soundproof | GX10T-LE02C | LSA46.3S3 | PCC300 | |
| 13 | 1000026107 | GXC150S-BG | PLS1326/3 | 1 | CHP | Soundproof | GX10T-LE02C | LSA46.3S3 | PCC300 | |
| 14 | 1000028195 | GXE250MC-NG | PLS1397/2 | 1 | Genset | Mini Container | GX13K-LE02G | PL4LS | GCC742 | |
| 15 | 1000027454 | CG520C-BG | PG2109/3 | 1 | CHP | Container | E 3262 LE202 | LSA49.3M6 | PCC300 | |
| 16 | 1000028235 | GXE150S-BG | PG2251/19 | 1 | Genset | Soundproof | GX10T-LE02G | PL3F | GCC742 | |
| 17 | 1000028235 | GXE150S-BG | PG2251/20 | 1 | Genset | Soundproof | GX10T-LE02G | PL3F | GCC742 | |
| 18 | 1000028235 | GXE150S-BG | PG2251/21 | 1 | Genset | Soundproof | GX10T-LE02G | PL3F | GCC742 | |
| 19 | 1000028231 | GXE250S-BG | PG2251/24 | 1 | Genset | Soundproof | GX13K-LE01G BG | PL4LS | GCC742 | |
| 20 | 1000352001 | GXE100-BG | PLS1334/2 | 1 | Gas Genset | Open | GX7S-LE02 | PL3DS | GCC742 | |
| 21 | 1000028188 | GXC110S-6BG | PG2216/2 | 1 | CHP | Soundproof | GX7S-LE02 | PL3DS | GCC742 | |
| 22 | 1000028229 | TCG800-NG | PLS1405/1 | 1 | CHP | Open | TCG3016V16 | LSA50.2M6 | PCC300 | |
| 23 | 1000244004 | GXE180-NG | PLS1198/4 | 1 | Genset | Open | 50Hz-3PH | GX11F-LE02 | LSA46.2L6 | |
| 24 | 1000258609 | GSC25S | PLS1218/3 | 1 | MCHP | Soundproof | 50Hz-3PH | 4Z | ECP28-VL/4 | |
| 25 | 1000286167 | GXC200C-BG | PLS1266/3 | 1 | CHP | Container | GX12T-LE02C | PL3H | PCC300 | |
| 26 | 1000027473 | GXC200C-BG | PLS1339/1 | 1 | CHP | Container | GX12T-LE02C | PL4MS | PCC300 | |
| 27 | 1000027320 | GXE350S-6BG | PG2041/4 | 1 | Genset | Soundproof | GX22D-LE02 | LSA47.2S5 | GCC742 | |
| 28 | 1000028177 | GXE100S-BG | PG2196/1 | 1 | Genset | Soundproof | GX7S-LE02 | PL3DS | GCC742 | |
| 29 | 1000286229 | GXE260C-6BG | PG2086/1 | 1 | Genset | Container | GX13K-LE02 NG | PL4M | GCC742 | |
| 30 | 1000434009 | GRS30S-LPG | PLS1444/1 | 1 | Genset | Soundproof | 50Hz-3PH | GR3.0 LE01L | PL2B | |
| 31 | 1000037041 | GXE350-NG | PLS1264 | 1 | Genset | Open | 1500/50 | GX20T-LE02 | S5L1D-C4 | |
| 32 | 1000352466 | ACG20S | PLS1395/1 | 1 | MCHP | Soundproof | 50Hz-3PH | 4Y | |
|
| 33 | 1000025868 | CG500DS-BG | PLS1252/2 | 1 | CHP | Soundproof | 50Hz-3PH | TBG-616V12K | |
|
| 34 | 1000037064 | ACG30S-6NG | PLS1463/1 | 1 | MCHP | Soundproof | 1800/60 | 60HZ/3PH | PCC300M | |
| 35 | 1000037065 | ACG50S-6NG | PLS1463/2 | 1 | MCHP | Soundproof | 1800/60 | 60HZ/3PH | PCC300M | |
| 36 | 1000037040 | GXE250-NG | PLS1444/4 | 1 | Genset | Open | 1500/50 | 50Hz-3PH | PCC300 | |

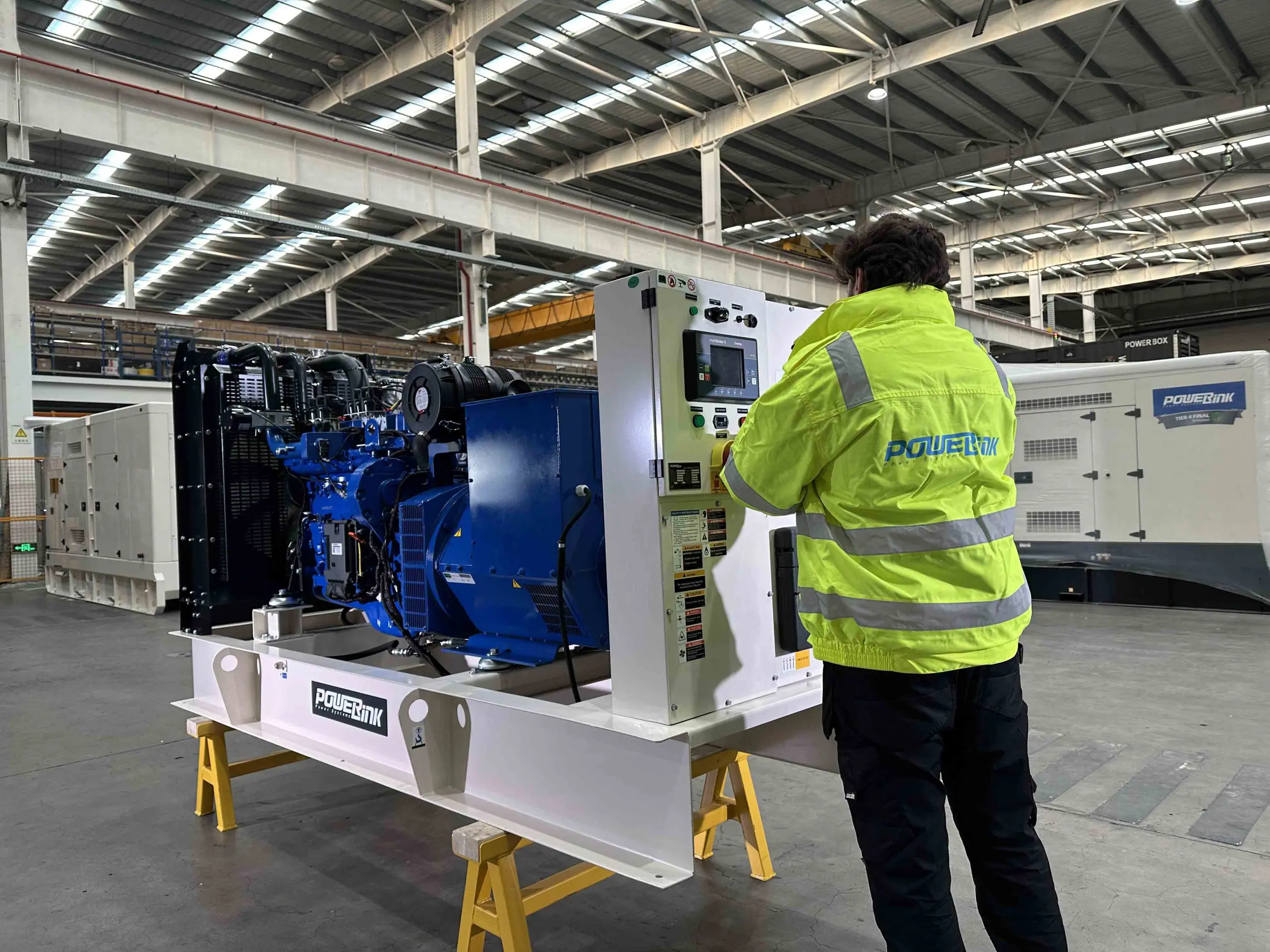

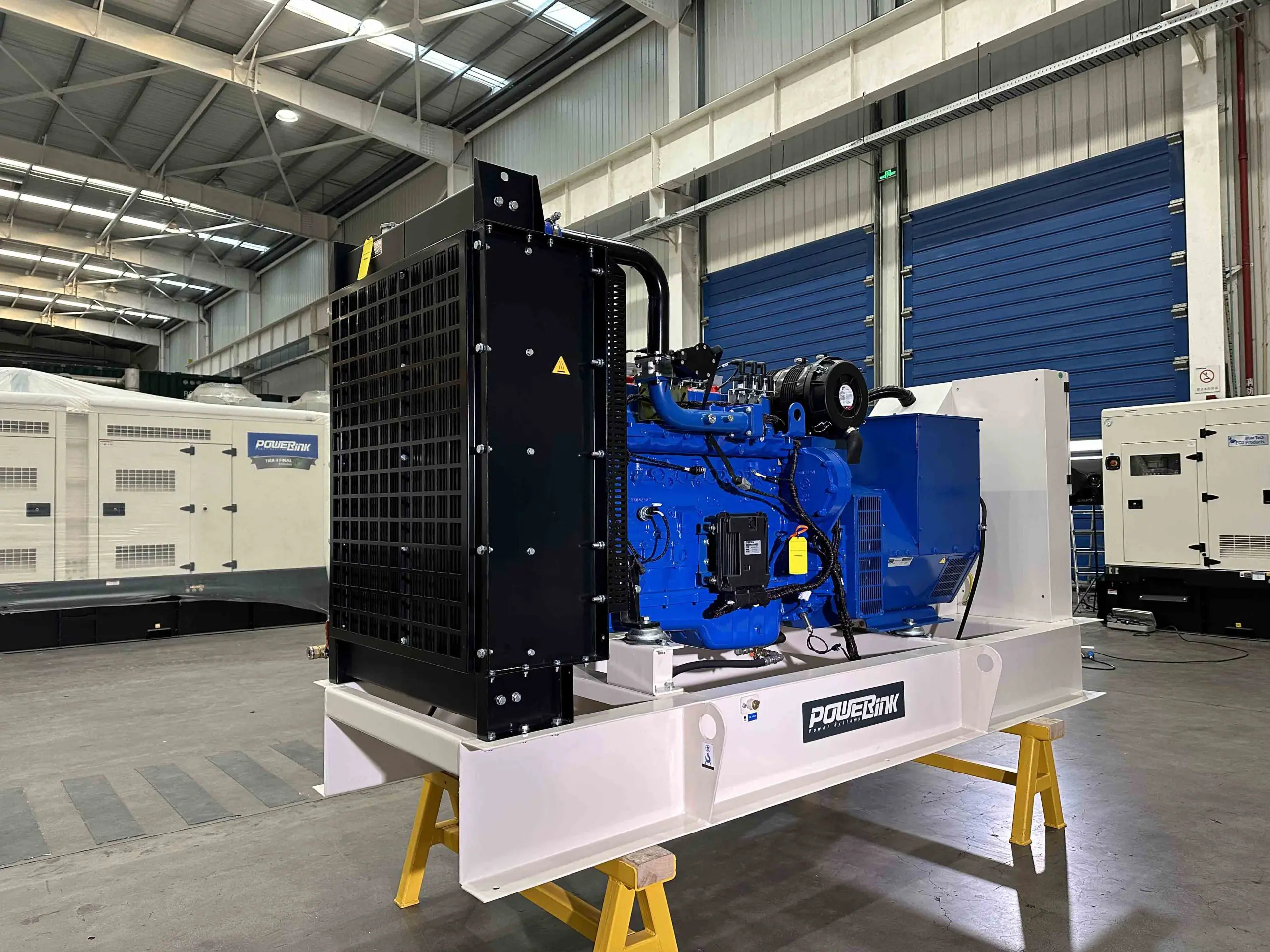

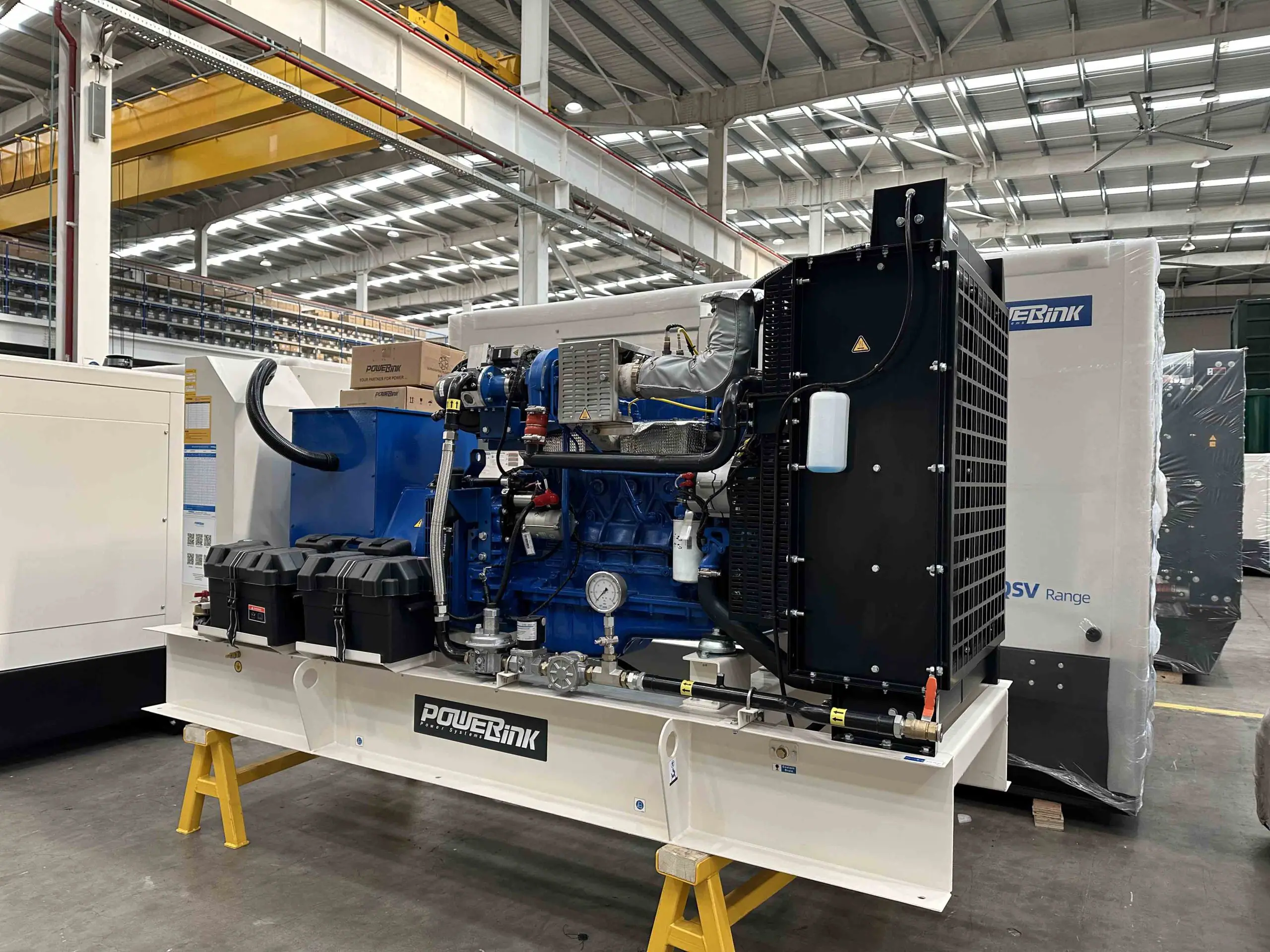

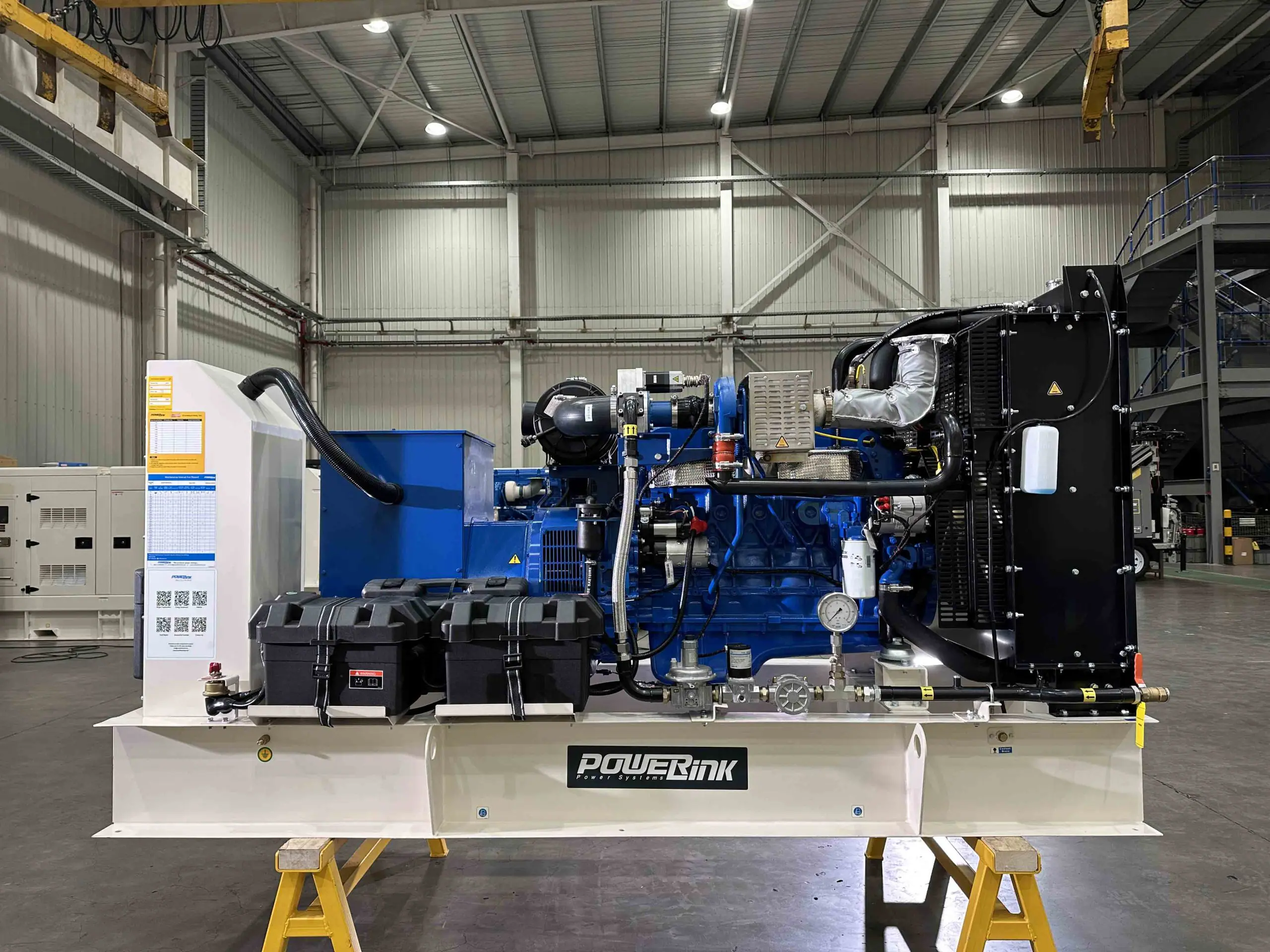

Gas Genset
Our GXE100-NG Gas Gensets are a series of energy-saving products with a power range of 10KW – 2000KW, and are fitted with a selection of different engines, which allow our engines to meet the needs of different types of applications.
Our generators are fitted with a PLM (full life cycle management) system which can generate reports and will display System data management and will show you the value of investment we have applied to these systems.
