50-1000kW

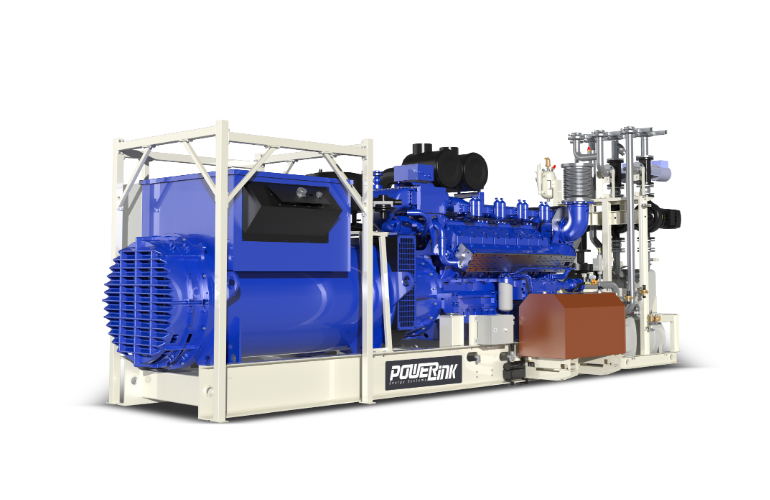

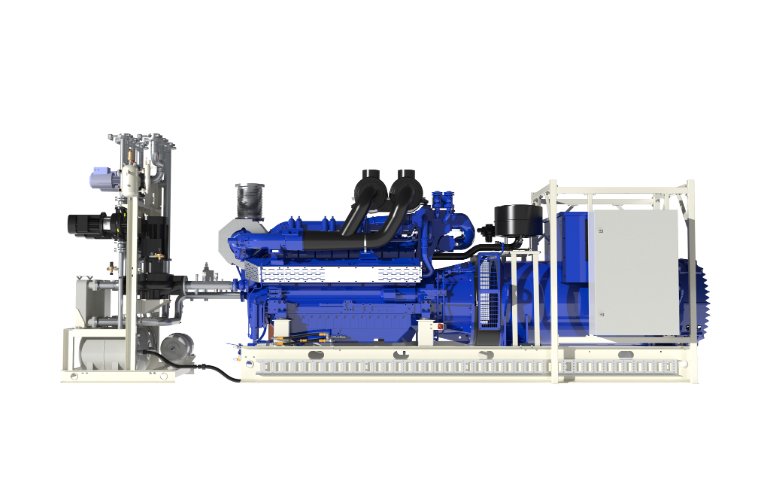

CG Series
Cost-Efficiency
Lower Capex, Minimal Opex
Flexible Deployment
Modular Design, Rapid Setup
Smart Operation
One-Touch, Plug-and-Play
Robust Performance
High Output, Extreme Reliability
Features
High-Value Product Positioning
Wide power coverage from 50 kW to 1000 kW to match diverse project demands
Lean Combustion Technology
Achieves high efficiency and ultra-low emissions for eco-friendly operation
Intelligent PCC300 Control System
Advanced automatic control reduces manual intervention and cuts labor costs
Ask an Expert
PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.
86-2157-858-099 ext 8820
info@powerlinkenergy.comCG Series Parameter

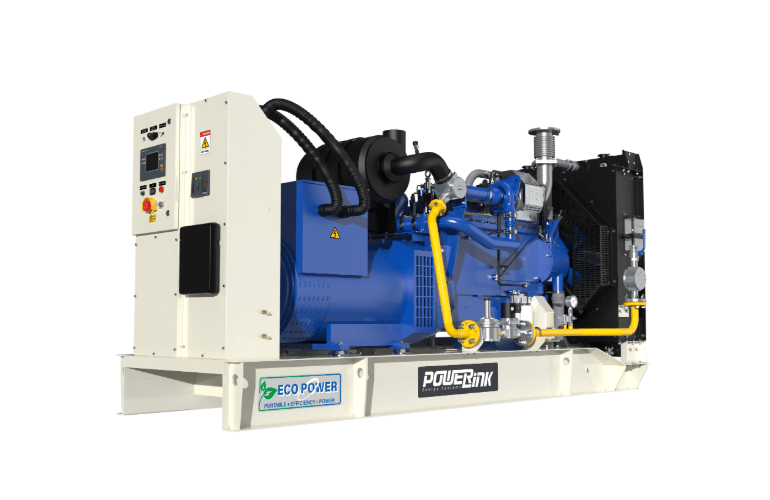

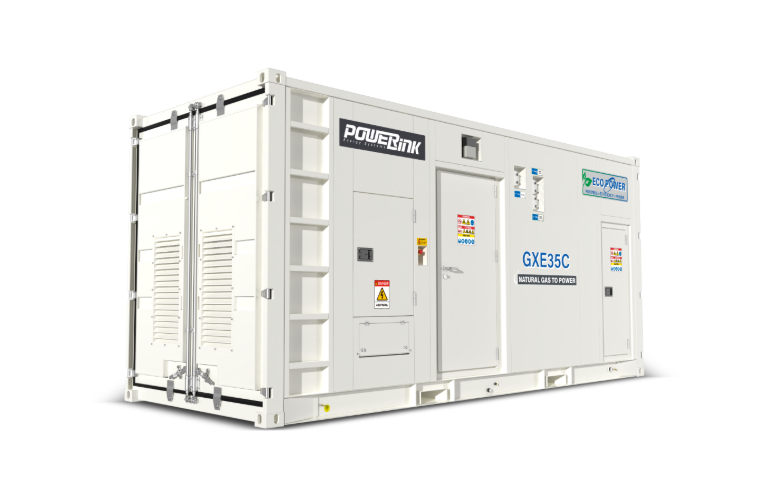

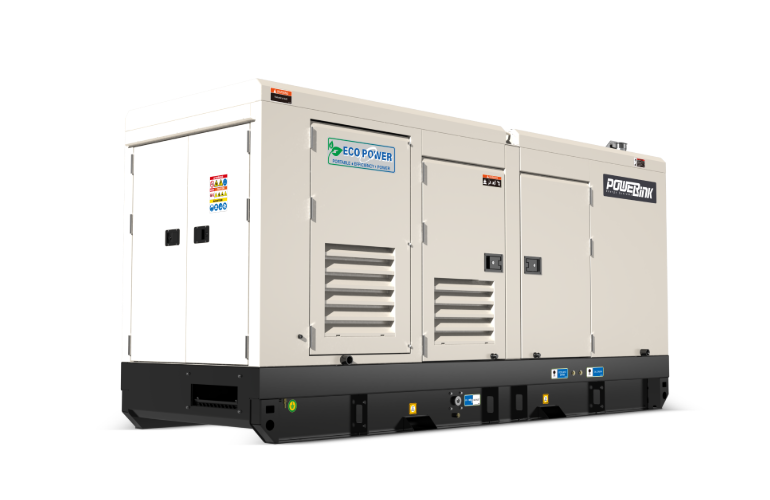

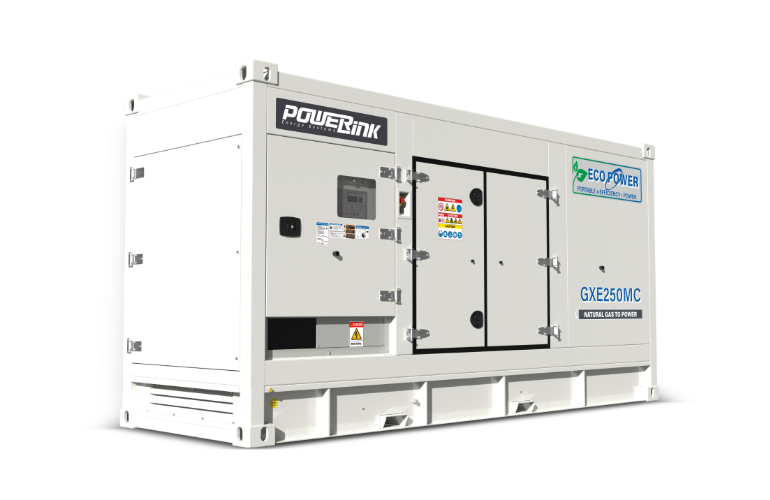

| StructureType | Open type | Soundproof | Container Structure | |
| Dimension(LxWxH), mm | 2800x1050x1550 | 3000x1050x1550 | 20/40 HQ &Optional | |
| Noise level@7m,dB(A) | 84.2 | 62.2 | 60.0 | |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz | 50Hz / 60Hz | |
| Voltage | 380V | 400V | 415V | 440V |
| Fuel Type | NG/BG | NG/BG | NG/BG |
CG50C-NG Specification
DownloadCG50C-NG Warranty Manual
CG50C-NG Brochure Manual
CG50C-NG Parts Manual
| StructureType | Open type | Soundproof | Container Structure | |
| Dimension(LxWxH), mm | 2800x1050x1550 | 3000x1050x1550 | 20/40 HQ &Optional | |
| Noise level@7m,dB(A) | 85.0 | 64.0 | 62.0 | |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz | 50Hz / 60Hz | |
| Voltage | 380V | 400V | 415V | 440V |
| Fuel Type | NG/BG | NG/BG | NG/BG |
CG66C-NG Specification
CG66C-NG Warranty Manual
CG66C-NG Brochure Manual
CG66C-NG Parts Manual
| StructureType | Open type | Soundproof | Container Structure | |
| Dimension(LxWxH), mm | 3250×1100 x1650 | 3500x1100x1650 | 20/40 HQ &Optional | |
| Noise level@7m,dB(A) | 82.5 | 65.1 | 63.1 | |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz | 50Hz / 60Hz | |
| Voltage | 380V | 400V | 415V | 440V |
| Fuel Type | NG/BG | NG/BG | NG/BG |
CG75C-NG Specification
CG75C-NG Warranty Manual
CG75C-NG Brochure Manual
CG75C-NG Parts Manual
| StructureType | Open type | Soundproof | Container Structure | |
| Dimension(LxWxH), mm | 3700x1150x1750 | 4000x1150x1750 | 20/40 HQ &Optional | |
| Noise level@7m,dB(A) | 87.0 | 67.9 | 65.0 | |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz | 50Hz / 60Hz | |
| Voltage | 380V | 400V | 415V | 440V |
| Fuel Type | NG/BG | NG/BG | NG/BG |
CG100C-NG Specification
CG100C-NG Warranty Manual
CG100C-NG Brochure Manual
CG100C-NG Parts Manual
| StructureType | Open type | Soundproof | Container Structure | |
| Dimension(LxWxH), mm | 4000x1225x1875 | 4285x1280x2095 | 20/40 HQ &Optional | |
| Noise level@7m,dB(A) | 86.9 | 68.0 | 66.0 | |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz | 50Hz / 60Hz | |
| Voltage | 380V | 400V | 415V | 440V |
| Fuel Type | NG/BG | NG/BG | NG/BG |
CG150C-NG Specification
CG150C-NG Warranty Manual
CG150C-NG Brochure Manual
CG150C-NG Parts Manual
| StructureType | Open type | Soundproof | Container Structure | |
| Dimension(LxWxH), mm | 4300X1300X2000 | 4570*1410*2440 | 20/40 HQ &Optional | |
| Noise level@7m,dB(A) | 91.1 | 72.9 | 70 | |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz | 50Hz / 60Hz | |
| Voltage | 380V | 400V | 415V | 440V |
| Fuel Type | NG/BG | NG/BG | NG/BG |
CG200C-NG Specification
CG200C-NG Warranty Manual
CG200C-NG Brochure Manual
CG200C-NG Parts Manual
| StructureType | Open type | Soundproof | Container Structure | |
| Dimension(LxWxH), mm | 4700x1600x2100 | 5100*1700*2500 | 20/40 HQ &Optional | |
| Noise level@7m,dB(A) | 89.4 | 75.2 | 73 | |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz | 50Hz / 60Hz | |
| Voltage | 380V | 400V | 415V | 440V |
| Fuel Type | Natural Gas | Natural Gas | Natural Gas |
CG350C-NG Specification
CG350C-NG Warranty Manual
CG350C-NG Brochure Manual
CG350C-NG Parts Manual
| StructureType | Open type | Soundproof | Container Structure | |
| Dimension(LxWxH), mm | 5500X2000X2100 | 5820*2180*2620 | 20/40 HQ &Optional | |
| Noise level@7m,dB(A) | 89.1 | 82.5 | 72.7 | |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz | 50Hz / 60Hz | |
| Voltage | 380V | 400V | 415V | 440V |
| Fuel Type | NG/BG | NG/BG | NG/BG |
CG520C-NG Specification
CG520C-NG Warranty Manual
CG520C-NG Parts Manual
CG520C-NG Brochure Manual
Related Product

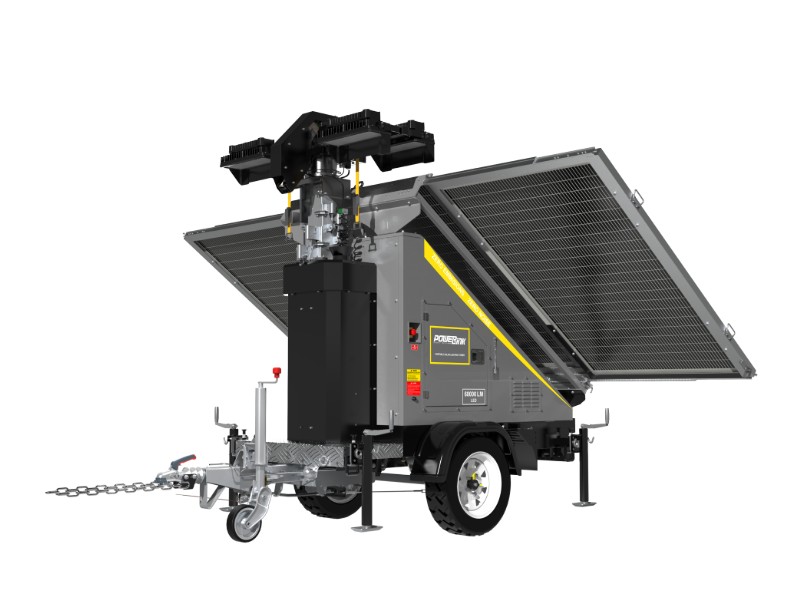

SL60K
High-efficiency outdoor lighting equipment, integrated with 1.5kWp PV panels and 14.3kWh energy storage battery, ensuring stable and...

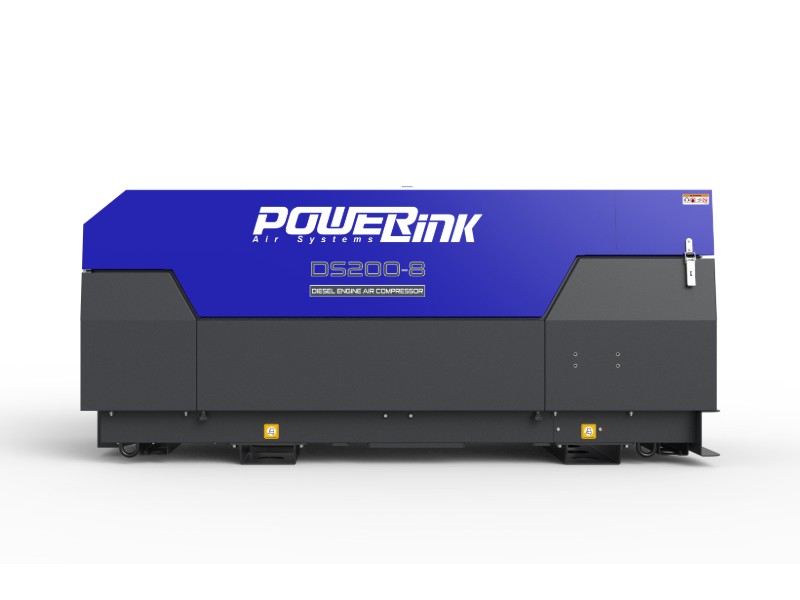

Low-Pressure
LOW-PRESSURE / DISCHARGE PRESSURE：7-8BAR DIESEL AIR COMPRESSOR PowerLink’s diesel-powered mobile air compressor...

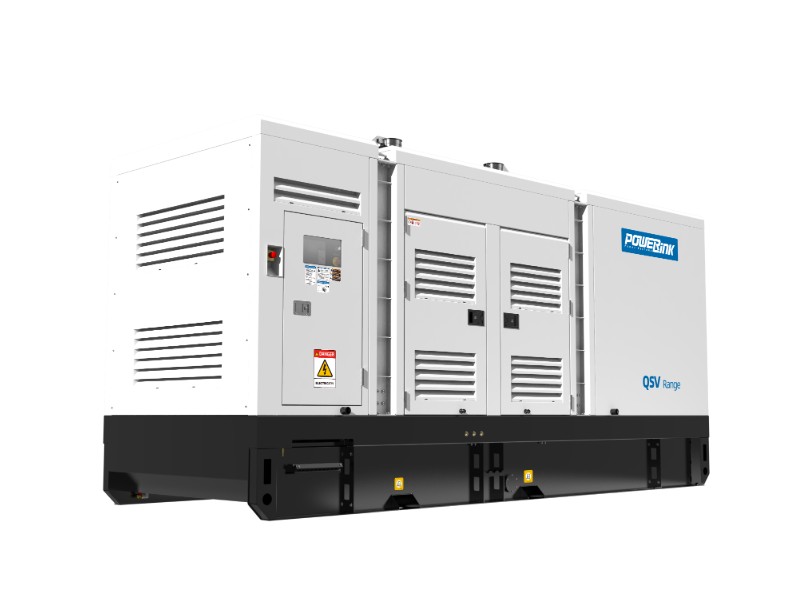

QSV Series
The QSV range of diesel generators, powered by PowerLink, Perkins, Kubota, and Cummins engines, provides 10 kVA to 2500 kVA for...
ACG Series
Micro-CHP unit is a miniaturized distributed energy equipment. It uses a single fuel such as natural gas and biogas as power, and usable heat.
FAQ
Can our gas unit be connected in parallel with the existing diesel engine on site?
Technically feasible, but gas and diesel are flammable and explosive fuels, which need to be safely isolated and non-standard design according to the specifications.
Is it feasible for two gas units to be installed in one container in parallel?
Our company has done the design project of parallel installation of two diesel generator sets in a container, and the design of two gas units in parallel in a container is technically feasible, and the specific design needs to be carried out according to the actual working conditions.
Is the unit control screen an Scada screen and can it be equipped with an HDMI interface?
Our unit cannot provide Scada screens, which are rarely used in the industrial field. Besides, we cannot provide HDMI interfaces either. We only provide interfaces such as USB, RS485 or RS232.
Does the gas valve assembly have a filtering function?
Our gas valve groups, whether single solenoid valves or double solenoid valves, all contain filters that can further filter and purify combustible gas.
Can natural gas and biogas be directly switched for a gas turbine unit?
It is not recommended to use natural gas and biogas as two types of fuel in the same gas unit. Their calorific values are different, and power drop will occur atier switching.
