Max power | TCG Series
Our TCG series gas cogeneration units are a high-value distributed energy product available with a power range from 600KW to 2000KW on either natural gas or biogas and can achieve a power efficiency rating of up to 44.4%. A selection of international top-brand engines and alternators are used with each model, and the advanced control systems provide intelligent and safe data analysis. The operation of the unit is safe and stable, which makes it highly reliable.
Main features:

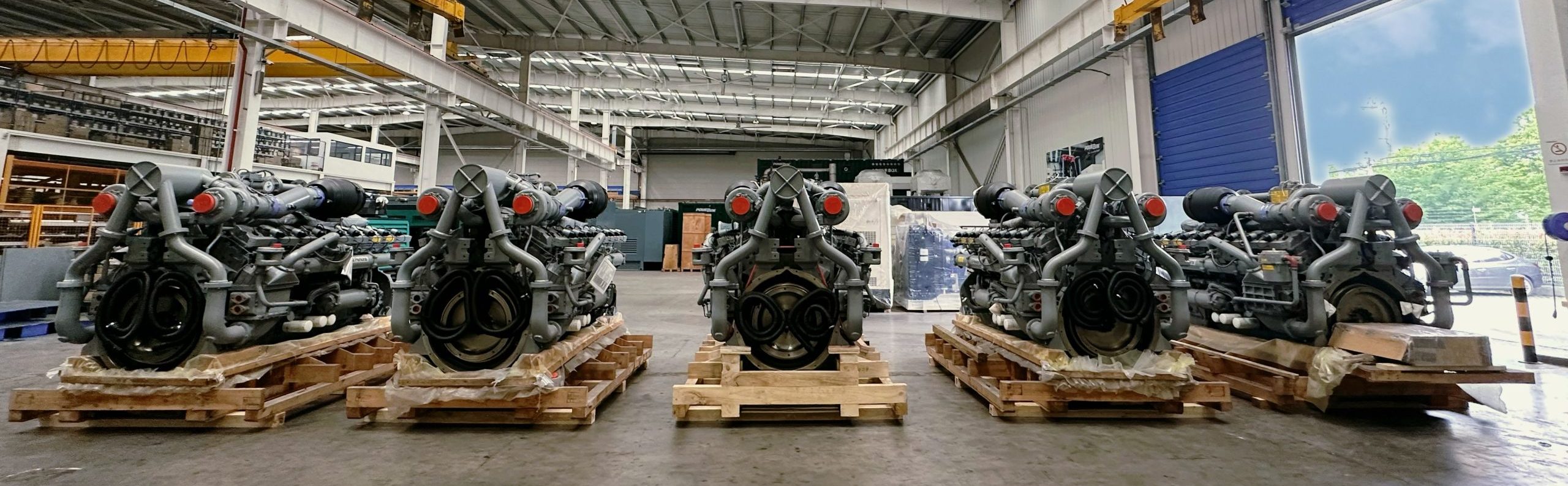

- MWM Engine.
- Market positioning is high value, electric power covers from 600~2000KW.
- Lean combustion technology is adopted for high efficiency and low emission.
- Modular structure design can be quickly installed and put into use.
- It has three design structures, open, soundproof, and outdoor, which can meet the different requirements of the application environment.
- PCC300 control system, advanced intelligence, which reduces labor cost.
- Automatic filling of the oil system to ensure the long duration of the unit running time.
- Continuous operation up to 6000h, overhaul cycle 30000h.
Models Available
TCG600C-BG
VIEW MORETechnical documentation
Standard features
Contains an automatic controlled exhaust automatic shutdown system when the unit fails. The automatic adjustment system will be stored within the unit when not in use, which can to prevent the entry of small animals. During the event of gas leakage, the automatic closing prevents the air from being isolated in the unit, which can prevent explosion.
Equipped with micro processing electronic ignition control system and speed control system, it can achieve omni directional detection, control and protection. The internet of things management system can help us understand of CHP related information.
The oil level controller monitors the oil level of the engine. When the value is lower than the set value, the auxiliary oil tank will automatically refuel and stop after the set value is reached. The oil level controller is built with a large inspection window, which makes it easier to during checks.
High Strength Chassis
The engine and generator base made out of the whole steel structure have high strength and good endurance. Strict control of each product accessories, so that we have high quality products.
Automatic Oil Filling System
The oil level controller monitors the oil level of the engine. When the value is lower than the set value, the auxiliary oil tank will automatically refuel and stop after the set value is reached. The oil level controller is built with a large inspection window, which makes it easier to during checks.
Smoke Alarm System
Timely detection of smoke concentration inside the unit. Once detected excessive smoke, it immediately set off an alarm to prevent the fire spread or explosion.
Series recommendation
CG50C-NG
CG series gas co-generation units are high value distributed energy products, power ranges from 600KW – 2000KW on either natural gas or biogas, the highest power efficiency can be up to 44.4%. This series of gensets can be manufactured in open, or containerised design as per client’s request.
- Powered by MWM
- Designed for big power supply
- Highly reliable performance
- Effective, low emission
- Flexible operation mode
- Flexible 50% – 100% load
GXC50S-NG
GXC series gas co-generation units are high value distributed energy products, power ranges from 50KW – 550KW on either natural gas or biogas, the highest power efficiency can be up to 44.4%. A selection of international top brand engines and alternators is used. The advanced control systems provide intelligent and safe data analysis, this is to ensure the safety and the stability operation of the unit, which makes it highly reliable.
This series of gensets can be manufactured in open, canopied, or containerised design as per client’s request.
- Powered by PowerLink
- Cost effective
- Economical for medium projects
- Efficient, clean
- Flexible connection mode
Selected Projects
1.8MW BIOGAS CHP SYSTEM ENGINEERING PROJECT
- Location: China
- Equipment: 3*CG600-BG Gas Genset
- Electric output mode: Low voltage to grid
- Field / fuel: Waste Centre / Waste Landfill Biogas
- Total output power: 1.8MW
400KW NATURAL GAS POWER GENERATION PROJECT
- Location: Europe
- Equipment: CG400-NG Natural Gas Genset
- Electric output mode: Low voltage to grid
- Field / fuel: Boiler House for residentials
- Total output power: 400KWe/460kWt
250KW BIOGAS POWER GENERATION PROJECT
- Location: United Kingdom
- Equipment: GXE250-BG
- Electric output mode: Low voltage to grid
- Field / fuel: Landfill Site / Biogas
- Total output power: 250KWe
250KW NATURAL GAS COGENERATION HOTEL PROJECT
- Location: Europe
- Equipment: CG250S-NG Natural Gas Genset Soundproof
- Electric output mode: Low voltage to grid
- Field / fuel: Hotel
- Total output power: 250KWe/330KWt
2MW BIOGAS POWER GENERATION PROJECT
- Location: China
- Equipment: 2x CG1000S-BG Gas Generator Container
- Electric output mode: Low voltage to grid
- Field / fuel: Livestock Manure / Biogas
- Total output power: 2MWel
75KW BIOGAS POWER GENERATION PROJECT
- Location: Brazil
- Equipment: 1xGXC75C-BG Biogas Genset
- Electric output mode: Low voltage to grid
- Field / fuel: Agricultural And Animal Husbandry / Biogas
- Total output power: 75KW
